图号
|
配件编码
|
配件名称
|
备注
|
数量
|
配置信息
|
|---|

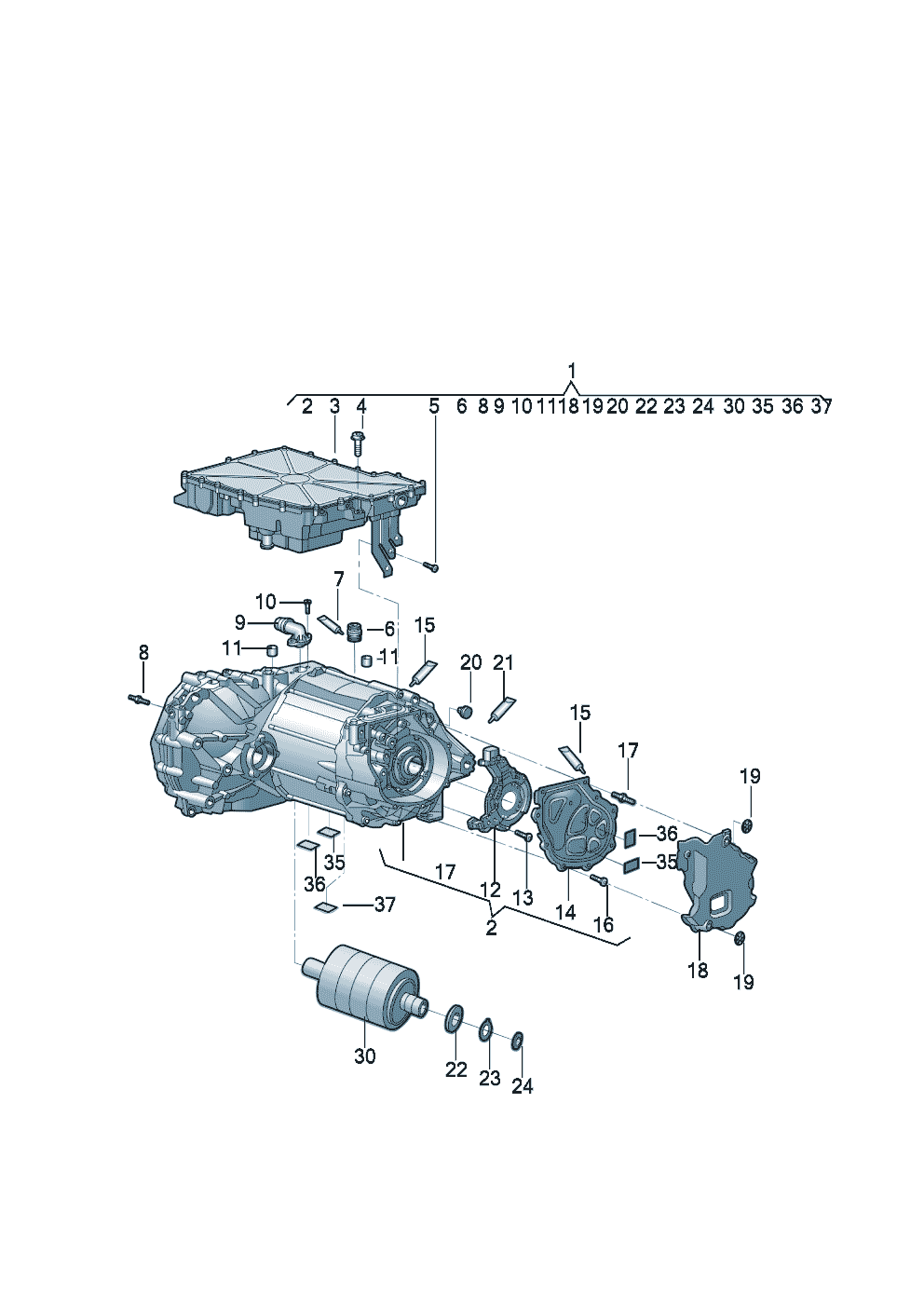

| 电驱动装置 | 后 | ||||||
| 1 | L1ED 901 153 D | 电驱动装置牵引电动机 D – 04.09.2023>> | 1 | ||||
| 2 | 电驱动装置牵引电动机 参见位置: | 1 | |||||
| 3 | L1ED 907 121 H | 逆变器 配合使用: | WHT 009 524 WHT 009 521 D 454 305 A1 | 1 | |||
| 3 | L1ED 907 121 AD | 逆变器 配合使用: | WHT 009 524 WHT 009 521 D 454 305 A1 | 1 | |||
| 3 | L1ED 907 121 AF | 逆变器 配合使用: | WHT 009 524 WHT 009 521 D 454 305 A1 | 1 | |||
| 4 | LWHT 009 524 | 组合六角螺栓 | M8X40 | 4 | |||
| 5 | LWHT 009 521 | 内六角圆头法兰面螺栓 | 3 | ||||
| 6 | L0EH 122 151 A | 连接件 配合使用: | G 052 150 A2 | 1 | |||
| 7 | G 052 150 A2 | 锂润滑脂 可使用于位置: | 180克 6 | 1 | |||
| 8 | 双六角螺栓 包含在： | 1 | |||||
| 9 | L0EH 121 131 A | 冷却液接头 带密封件 | 1 | ||||
| 10 | LN 107 002 01 | 内六角圆形螺栓 | M6X22 | 2 | |||
| 11 | L016 301 299 D | 密配套筒 | 4 | ||||
| 12 | L0EH 907 125 A | 带温度传感器的 转子位置传感器 配合使用: | N 107 877 01 | 2 | |||
| 13 | LN 107 877 01 | 平头螺栓 | M5X18 | 9 | |||
| 14 | L0EH 907 300 A | 罩盖 配合使用: | D 454 305 A1 N 107 002 01 12E 010 001 B | 1 | |||
| 15 | D 454 305 A1 | 密封剂 可使用于位置: | 50克 3,14 | 1 | |||
| 16 | LN 107 002 01 | 内六角圆形螺栓 | M6X22 | 7 | |||
| 17 | WHT 009 839 | 双六角螺栓 | M6X20-CT5X10 | 2 | |||
| 18 | L0EH 907 304 B | 盖罩 减震器元件 | 1 | ||||
| 19 | N 912 949 01 | 锁紧垫圈 | 5X18X2.5 | 2 | |||
| 20 | L0EA 122 444 | 排气阀 配合使用: | G 055 172 A1 | 1 | |||
| 21 | G 055 172 A1 | 专用润滑剂 燃料油-润滑剂- N 05217201 | 16克 | 1 | |||
| 22 | L0EH 901 220 A | 脉冲信号轮 | 1 | ||||
| 23 | L0EH 901 239 A | 弹簧座 | 1 | ||||
| 24 | LN 108 728 01 | 弹簧环 包含在以下项内： | 1 | 1 | |||
| 30 | 电动马达 包含在以下项内： | 1 | |||||
| 35 | L12E 010 001 B | 提示牌 | 2 | ||||
| 36 | L971 010 602 A | 提示牌 |
