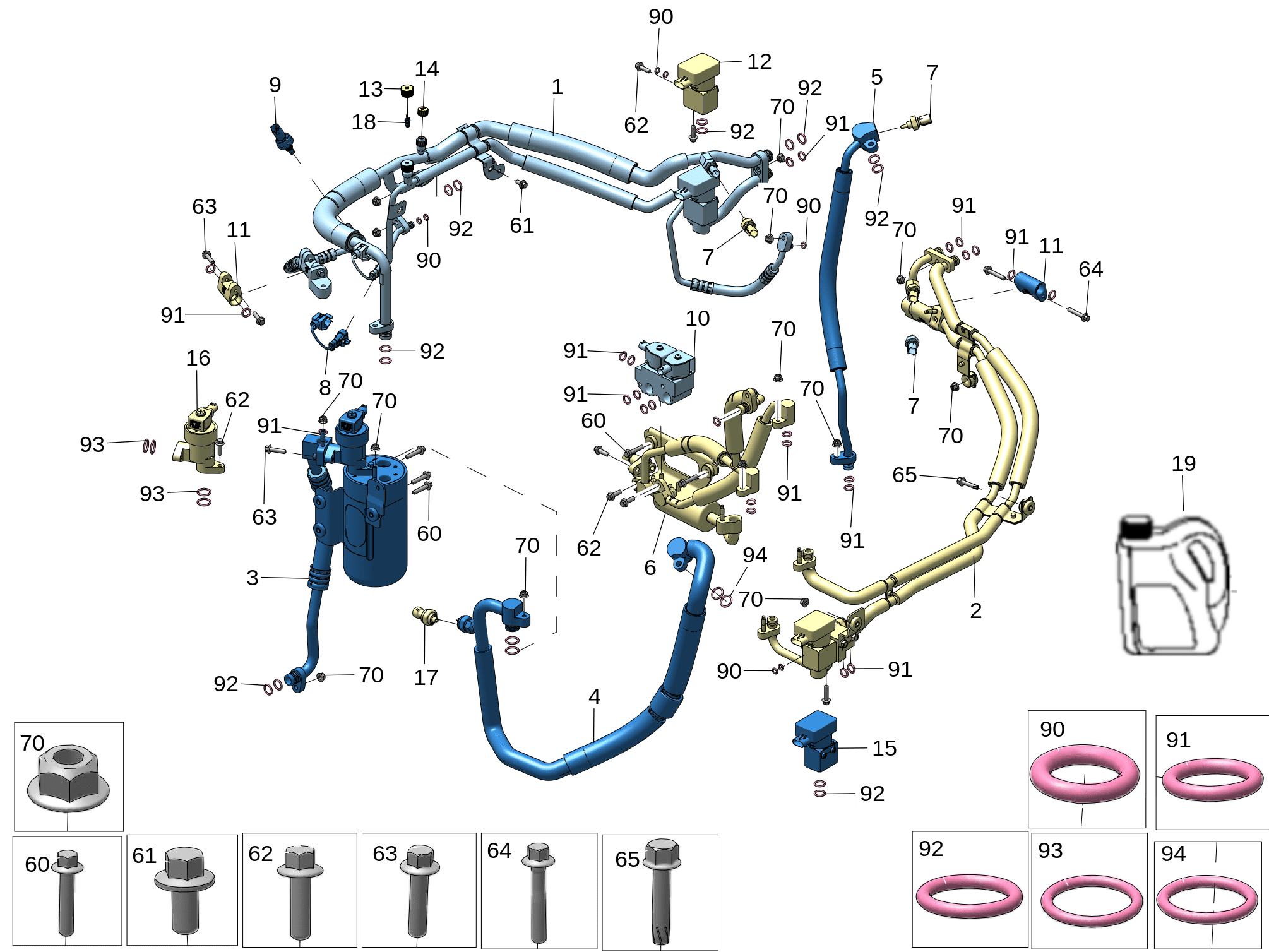

| 位置 | OE | 名称 | 型号 | 备注 |
|---|---|---|---|---|
| 1 | 8890248916 | 空调高低压管 | ||
| 2 | 8890248928 | 空调高低压管 | ||
| 3 | 8890248922 | 液气分离器 | ||
| 4 | 8890248930 | 压缩机进气管 | ||
| 5 | 8890248932 | 压缩机排气管 | ||
| 6 | 8891037592 | 压缩机排气管 | ||
| 7 | 8889364737 | 冷媒温度传感器 | ||
| 8 | 8889363530 | 冷媒温度传感器 | ||
| 9 | 8889363543 | 压力传感器 | ||
| 10 | 8892182866 | 电磁阀 | ||
| 11 | 8892148135 | 单向阀 | ||
| 12 | 8892182859 | 膨胀阀 | ||
| 15 | 8892182861 | 冷凝器膨胀阀 | ||
| 16 | 8892182864 | 电磁阀 | ||
| 16 | 6608297776 | 电磁阀 | ||
| 17 | 8889363541 | 低压管路压力传感器 | ||
| 19 | 8888864786 | 空调制冷剂 R134a/300g | ||
| 60 | 8888010518 | 法兰螺钉 M6*30 | ||
| 61 | 8888079413 | 法兰螺钉 M6x12 | ||
| 62 | 8888010588 | 法兰螺钉 M6*20 | ||
| 63 | 8888011521 | 法兰螺钉 M6×25 | ||
| 64 | 8888010987 | 六角法兰面螺栓 | ||
| 65 | 8888298668 | 法兰螺钉 M6*30 | ||
| 70 | 8888010652 | 法兰锁紧螺母 M6×7.3 | ||
| 90 | 8890533719 | O型圈 Ø6.8X1.9 | ||
| 91 | 8890533730 | O型圈 Ø10.8X2.4 | ||
| 92 | 8890533781 | O型圈 Ø13.4X2.4 | ||
| 93 | 8890533807 | O型圈 Ø17.2X2.4 | ||
| 94 | 8890533793 | O型圈 Ø16X2.4 |
